   HYDRAULIC HAND PUMPS              280 ~ 6000cc

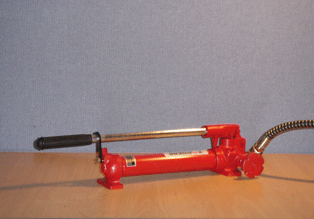

        SDP-16B

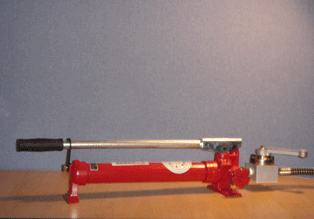

        SDP-1B

       SDP-2A

  • Reservoir Capacity : 280 ~ 6000cc

  • Volume per stroke : 1 ~ 7cc/stroke

  • Maximum Pressure:700bar

  • To order double acting hand pump add the letter "D" to the model No. ex)SDP-3A-D

  • Use Double Action Cylinder of Hand Pump

    •   Spec.   700 bar PUMP

    Specfication

    Model Reservoir
    Capacity
    (cc)    		 Volume per
    Stroke (cc)    		 Piston
    Dia. (mm)    		 Piston
    Stroke
    (mm)    		 Weight
    (kgs)
    High
    Pressure    		 Low
    Pressure    		 High
    Pressure    		 Low
    Pressure
    SDP-16B 280 1 5 10 20 14.5 3.1
    SDP-1B 700 2.3 13 12 28.5 20.5 7.0
    SDP-2A 2500 2.3 13 12 28.5 11.5
    SDP-3A 4300 14 31 12 44 13.5
    SDP-3B 6000 15 90 14 60 30 26.0

      Spec.  700 bar ALUMINUM PUMP

    Specfication

    Model Reservoir
    Capacity
    (cc)    		 Volume per
    Stroke (cc)    		 Piston
    Dia. (mm)    		 Piston
    Stroke
    (mm)    		 Weight
    (kgs)
    High
    Pressure    		 Low
    Pressure    		 High
    Pressure    		 Low
    Pressure
    SDPA-1B 700 2.3 13 12 28.5 20.5 4
    SDPA-2A 2500 2.3 13 12 28.5 8.1
    SDPA-3A 4300 14 31 12 44 12

      Spec.   1500 bar PUMP

    Specfication

    Model Reservoir
    Capacity
    (cc)    		 Volume per
    Stroke (cc)    		 Piston
    Dia. (mm)    		 Piston
    Stroke
    (mm)    		 Weight
    (kgs)
    High
    Pressure    		 Low
    Pressure    		 High
    Pressure    		 Low
    Pressure
    SDP-1B-1500 700 2.3 13 12 28.5 20.5 7
    SDP-2A-1500 2500 2.3 13 12 28.5 11.5

    Custom made for special requirements
